| Place of Origin: | China(Mainalnd) |
| اسم العلامة التجارية: | SCX |
| إصدار الشهادات: | CE,ISO,RoHs,FCC |
| Model Number: | SCX-P2 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| الأسعار: | 999-1399USD/sqm |
| Packaging Details: | Carton,wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| البكسلات: | 2 مم | Usage: | Indoor |
|---|---|---|---|
| الضمان: | سنتان | Module size: | 256*128 mm |
| اسم المنتج: | لوحة عرض فيديو LED | Brightness: | 1000nits |
| Led chip: | Epistar | Application: | stage rental |
| Life span: | 100000hours | Color: | Full-color |

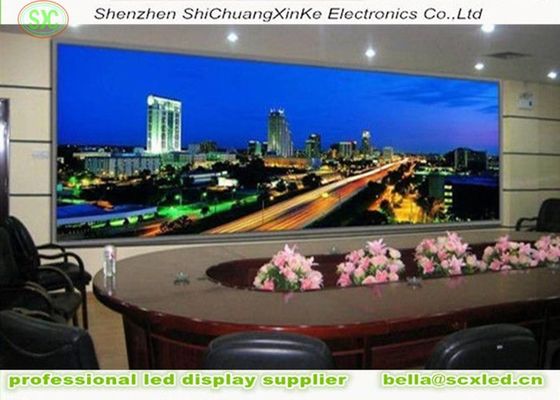

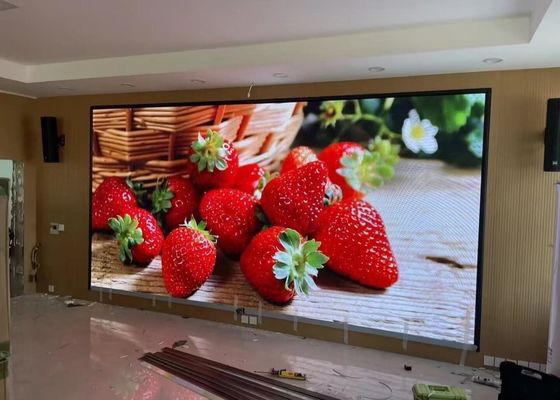

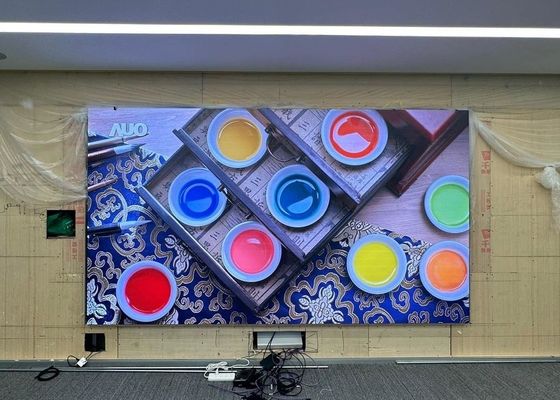

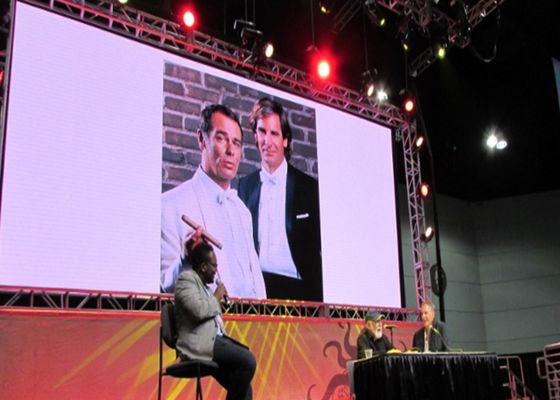

Indoor Full Color LED Display P2 Rental Screen 2 years Warranty on Hot Sale
Short details:
1.2-year warranty - when there is a problem, we can repair it immediately, no need to wait in line;
2. We also provide free technical support, if you need us, we will always help you;
3. We are a company with our own factory, so the quality is guaranteed and the price is also very good;
4. We accept customized consultation, the price is cheaper than other companies;
5. Our sales engineers are always online, you can contact us if you have any questions;
Specifications:
| Resolution/mm | 2 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 250000dots/quare meter |
| Module resolution | 128x64 |
| Module size/mm | 256x128 |
| View distance | 2-50m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 1000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/32 |
| Frame rate | 60Hz |
| Refresh frequency | 1920Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss | |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <1000W |
| Average power:/square meter | <300W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) | |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) | |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
FAQ
Q1: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
Q2: Can I customize it?
A: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q3: What is Price per square meter of screen?
A: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q4: What is the warranty?
A: 5-8 years Warranty.
Q5: How many days for producing?
A: 1-3 days for inventory products and 10-15 days for customized products.
Q6: How to operate and use it?
A: It can by controlled by PC and Smartphone very easily.
Welcome to inquiry for more information. We provide video guidance and remote assistance.
