شنتشن Shichuangxinke إلكترونيات المحدودة
المهنية يجعل نوعية جيدة، وتوفير المنتج المثالي والخدمات لكافة العملاء.
 |
| Place of Origin: | China ,Guang Dong |
| اسم العلامة التجارية: | Shichuangxinke |
| إصدار الشهادات: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P8 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| الأسعار: | USD1900-2100 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 8 | Pixel Density: | 15625 |
|---|---|---|---|
| Scanning Mode: | 1/4 scanning | Module size: | 256*128MM |
| Control system: | LSN | Working voltage: | DC5V |
| Warranty: | 3-5 years | Certificates: | CE RoHS FCC CCC UL |
| Application: | stadium,event stage,airport,shopping mall,street advertising |
Rental Stage Background P8 IP65 LED Display Indoor Outdoor Wall Event HD Scaning Mode1/4
Description:
1) Video display for advertisement
2) Live broadcast for news, sport, concert

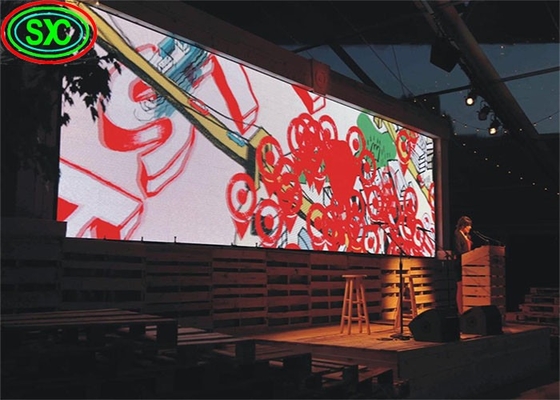

3) Stage background
4) Information display for time, schedule, text
5) Dynamic display for logo, text, video
Products function introduction:
1) High brightness, adjustable, can meet customer requirements according to the environment.
2) Optimal uniformity, well solves the mosaic problem, with excellent light consistency
3) For images and texts, it has a clear, delicate and real display effect LED curtain screen
4) Large viewing angle, up to 110 degrees horizontally and 60 degrees vertically
5) Each LED light can be repaired, so the maintenance cost is low and easy to repair.
6) It is usually suitable for sports, advertising, banks, stock exchanges, stations, ports, indoor P6 display screens, etc.
Our service:
1. Your inquiry about our products or prices will be responded within 24 hours.
2. Well-trained and experienced staff will answer all your inquiries in fluent English.
3. OEM and ODM, any customized screen you want, we can help you design and put into the product.
4. Provide distributors for your unique design and some of our current models.
5. Protect your sales area, design ideas and all private information.
FAQ:
Q1: How to help client choose suitable display?
A1: (1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control
Q2: What about your technical support?
A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required.
Q3: What's the control system?
A3: For synchronization control: Nova, Linsn or Mooncell control system.
For asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.
Q5: What's your payment method?
A5: Our payment method is T/T 30% as deposit, balancing before delivery.
Specifications
| outdoor SMD P8 | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/m² | ||||
| Module resolution | 256x128 | ||||
| Module size/mm | 512x512MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Info about company:
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production, marketing and after-sales service of LED displays.
We can offer all types of indoor and outdoor led display, and it's videly used in banking, communicatins offices, electric power industry, traffic, stadiums and sporting area, business plaza, entertainment for the applications of advertising, sports,event, stock/ sport news ticker, message center, price etc. The basic LED cabinet are easier for customers' installation and maintenance to meet the market requirement.
We are also renowned for building custom LED Display that will meet your unique and specific need. More importantly, we are committed to providing quality products at competitive prices and superior customer services. With the quality management sustem ISO9001, the strong R&D and manufacturing group, SCXK became one of the leading companies or LED display industry in Shenzhen.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
