شنتشن Shichuangxinke إلكترونيات المحدودة
المهنية يجعل نوعية جيدة، وتوفير المنتج المثالي والخدمات لكافة العملاء.
 |
| Place of Origin: | China(Mainland) |
| اسم العلامة التجارية: | SCX |
| إصدار الشهادات: | CE,ISO,FCC,UL |
| Model Number: | SCX-P4 |
| Minimum Order Quantity: | 5 sqm |
|---|---|
| الأسعار: | 500-656USD/sqm |
| Packaging Details: | Wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, , L/C, Western Union, MoneyGram |
| Supply Ability: | 5000sqm/month |
| Color: | 1R1G1B | Pixel pitch: | 4mm |
|---|---|---|---|
| استخدام: | في الداخل | Material: | Aluminum |
| Module size: | 256*128mm | Cabinet size: | 512*512mm |
| Warranty: | 3 years | Certificate: | CE ROHS FCC |
| Life span: | ≥10000 hours |

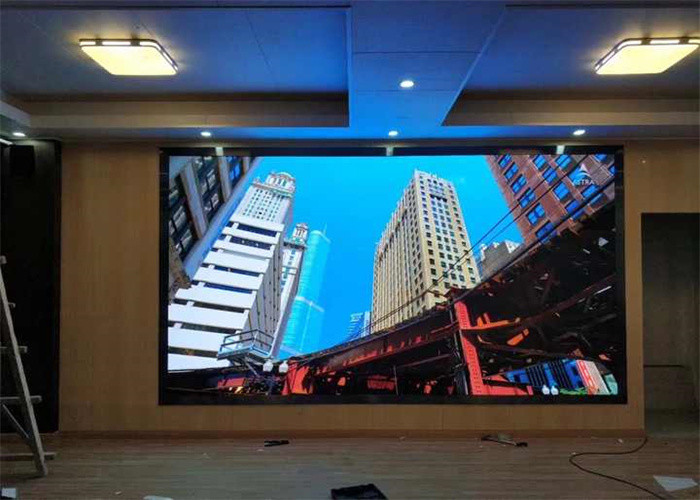

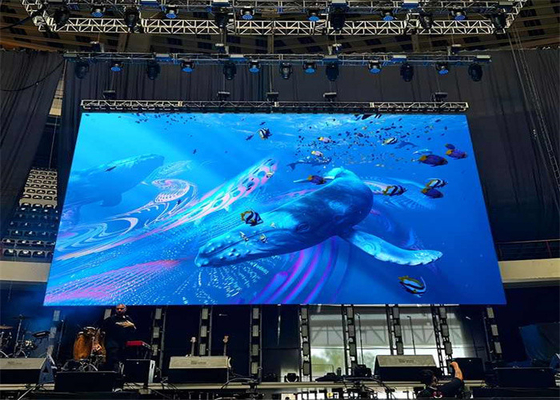

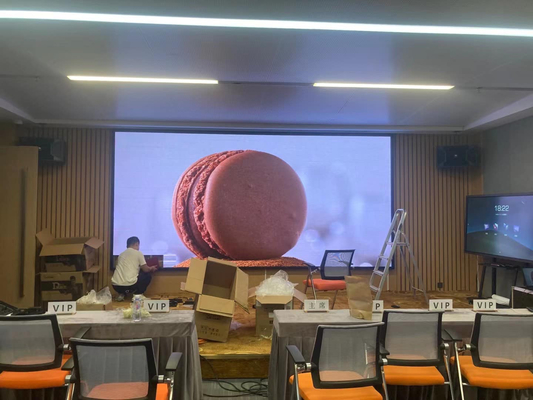

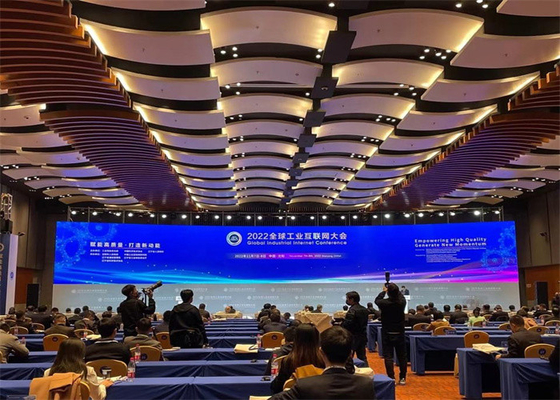

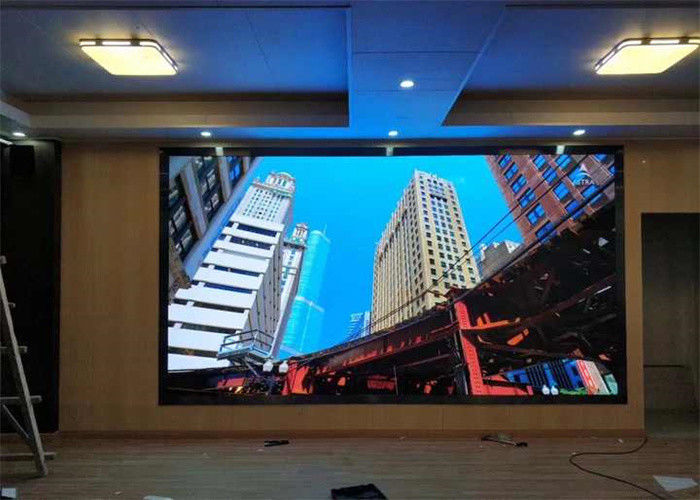

Indoor Full Color LED Display P4 Rental Usage Video Advertising Screen
Specifications :
| Indoor P4 LED Display Screen | |||||
| Resolution/mm | 4 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 62500/square meter | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 4-30m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >800cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >1000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days .
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
5. How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality .
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time ) We're innovative high-end led display with over 10 years manufacturing experience, and we believe you could get a professional solution and best service from SCXK. We're happy to serve you. If you need led display screen,welcome to contact us,we can customize according to your needs. For more questions about SCXK wholesale price full color smd outdoor/indoor led video display screen fixed with iron cabinet , please contact me of SCXK LED direct OEM manufacturer right now! Welcome any question!
