شنتشن Shichuangxinke إلكترونيات المحدودة
المهنية يجعل نوعية جيدة، وتوفير المنتج المثالي والخدمات لكافة العملاء.
 |
| Place of Origin: | China ,Guang Dong |
| اسم العلامة التجارية: | Shichuangxinke |
| إصدار الشهادات: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P4 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| الأسعار: | USD1900-2100 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| وقت التسليم: | 7-10 أيام عمل بعد استلام دفعة الإيداع |
| شروط الدفع: | L/C، T/T، ويسترن يونيون |
| Supply Ability: | 5000sqm per month |
| القرار / مم: | 4 | Pixel Density: | 62500 |
|---|---|---|---|
| Scanning Mode: | 1/8 scanning | Control system: | LSN |
| Module size: | 256*128MM | certificates: | CE RoHS FCC CCC UL |
| application: | stadium,airport,shopping mall,street advertising | working voltage: | DC5V |
| warranty: | 3-5 years |

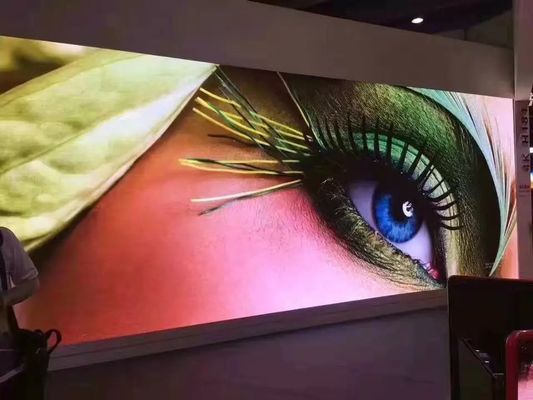

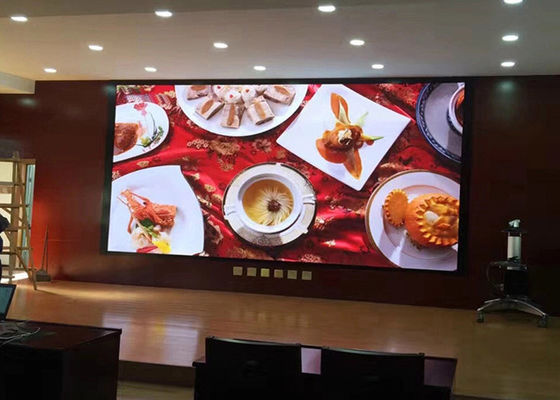

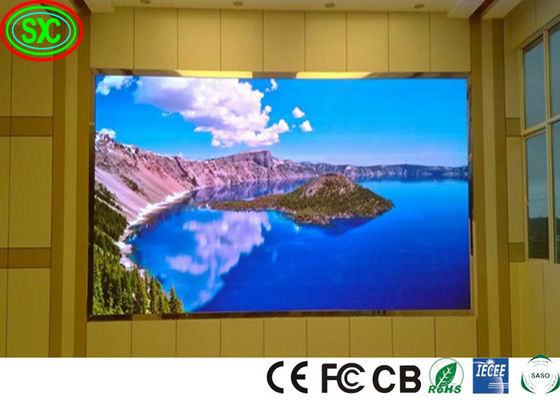

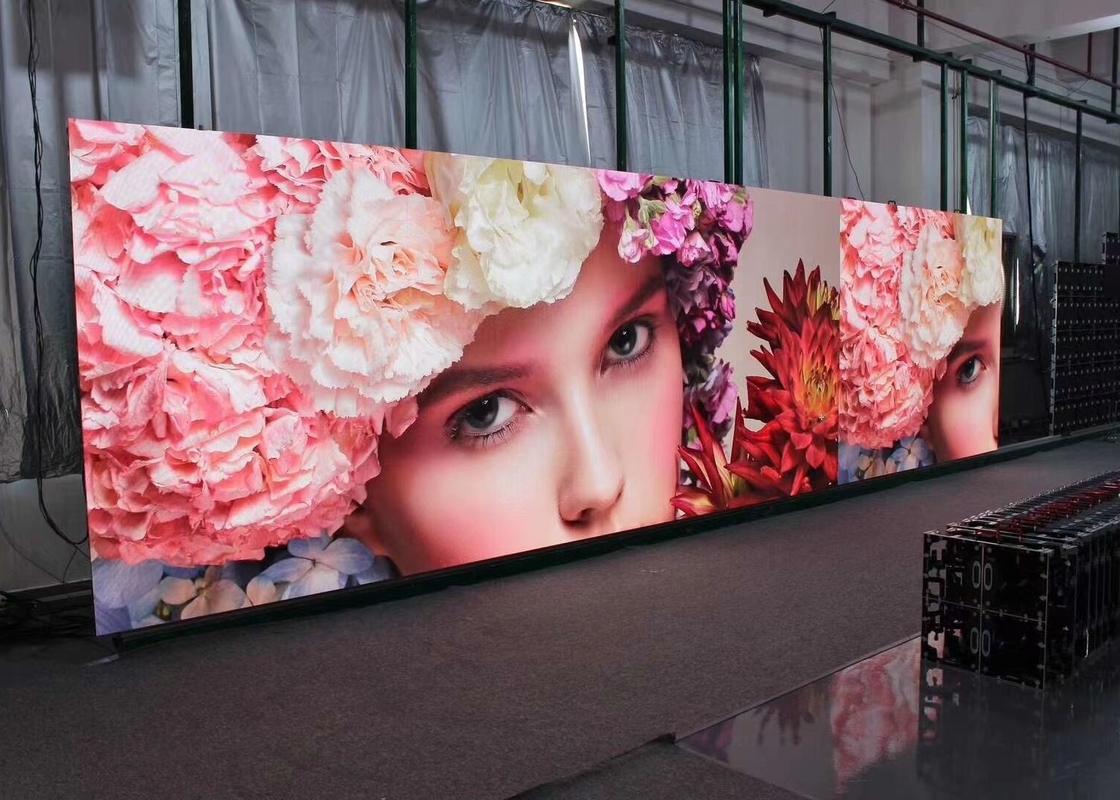

Indoor and Outdoor Screen For Rental LED Display 1R1G1B P4 Module Size256*128mm
1) Video display for advertisement
2) Live broadcast for news, sport, concert
3) Stage background
4) Information display for time, schedule, text
5) Dynamic display for logo, text, video
FAQ
Q1: How do you help customers choose the right display?
A1: (1) Specific application scenarios
(2) Viewing distance requirements
(3) Display brightness requirements
(4) Specific installation environment
(5) Budget and cost control
Q2: How is your technical support?
A2: Professional engineers are on call at any time to provide guidance and on-site technical support as needed.
Q3: What is the control system?
A3: Synchronous control: Nova, Linsn or Mooncell control system.
Asynchronous control: Onbon or Xixun control system.
Q4: How long is the warranty of your LED display?
A4: We provide 2-year warranty and lifetime technical support for our LED display products.
Q5: What is your payment method?
A5: Our payment method is T/T 30% as deposit and the balance before delivery.
Specifications :
| outdoor SMD P4 | |||||
| Resolution/mm | 4 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 62500/m² | ||||
| Module resolution | 256x128 | ||||
| Module size/mm | 512x512MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
after-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
