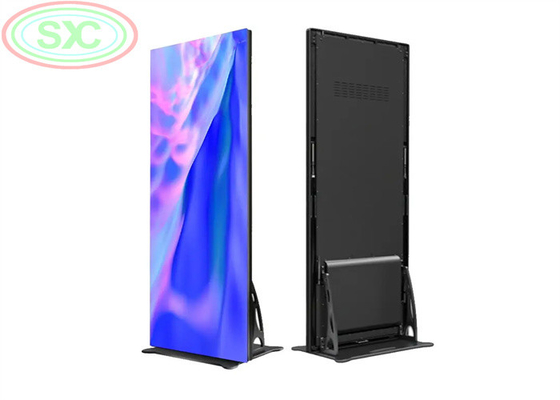

Fine Pitch P2.5 Indoor Full Color LED Advertising Poster Screen 640x640mm

P2.5 P3 Indoor Sexy Portable Mirror LED Video Poster Screen for Advertising





The Technical Parameters of LED Poster Screen



Indoor SMD P2.5
Lamp size	2121
Resolution/mm	2.5
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	160000/m²
Module resolution	64x64
Module size/mm	160x160
View distance	≥2.5m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>800cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	140(degrees)
Vertical view angle	140(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	1/16
Frame rate	60Hz
Refresh frequency	>4200Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡	<1000W
Average power:/㎡	<280W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%



The Application of led poster screen

Indoor poster perfect match for hotels and can also be used at bank, store, airport, hotel, station, summit, theatre and other indoor areas.



The Features of Led Poster Screen



1)Easy to maintain

Our poster screen uses the reasonable structure. We choose the magnetic absorption module, so it can be maintained from the front.



2)Revolutionary energy-saving technology

Using low power consumption led module not only saving running costs but also expends the lifespan working in low power consumption.



3) Integrated design

Select professional-grade aviation plug as connectors, which make quality and safety are guaranteed. Integrated circuit design ensures product stability and reliability.

4)Lighter and Thinner

It's lighter than traditional advertising players which makes it easy to transport and install.





5)Revolutionary energy-saving technology

Using low power consumption led module not only saving running costs but also expends the lifespan working in low power consumption.



6)Excellent display effect

140°viewing angle can reach more audiences and make a good advertising display effect. 16bits color depth processing, accurate color
reproduction, make image vivid and live.



7)Strict Aging Test

All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The Best Indoor Advertising is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.



8)Online control

Through the network centralized control management platform to achieve remote monitoring and management, with custom broadcast software, to achieve a key to edit the program content.



More Details of Led Poster Screen



Packing&Shipping



Packing: wooden case, flight case for choose

shipping: by air, sea, train, DHL, you are the boss



Our service



FAQ



Q1: What`s your payment term? How long it takes to delivery?
