Name: P10 IP65 Waterproof Truck Mounted LED Display 10mm Pixel Pitch
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 1,629.00 USD
Availability: InStock

منزل المنتجات العرض المتحرك شاحنة LED

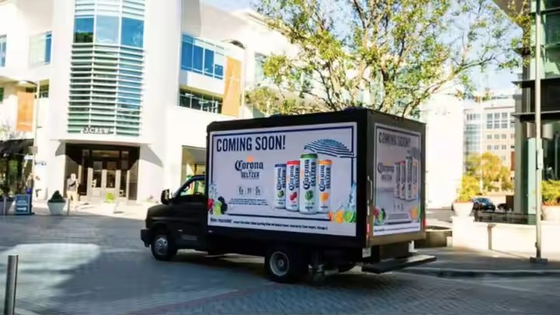

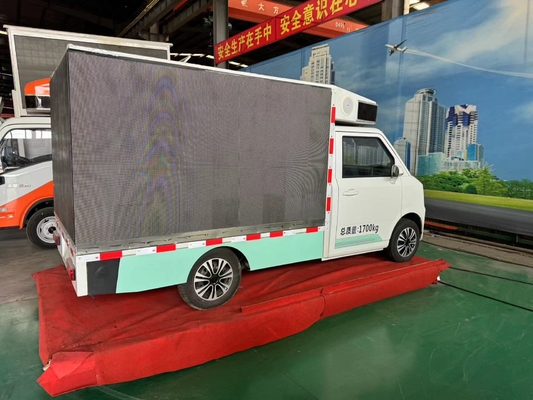

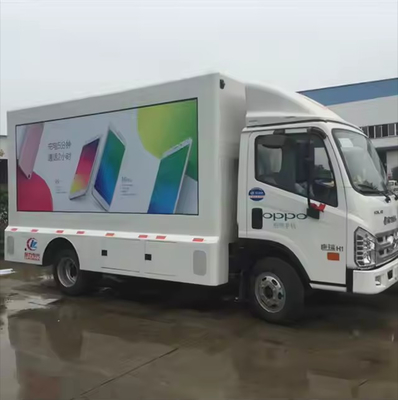

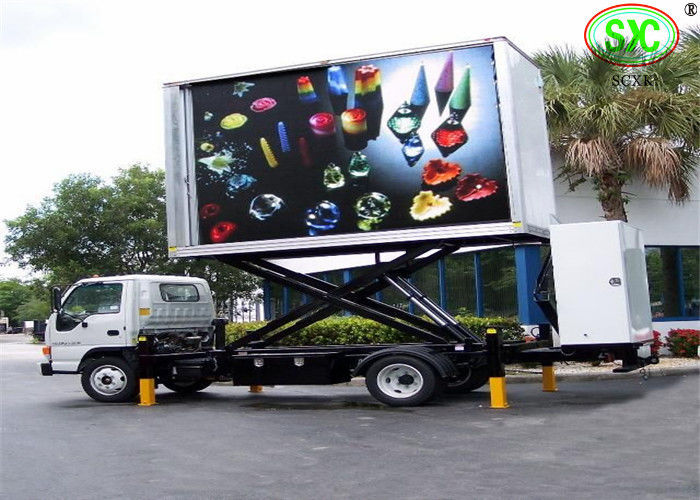

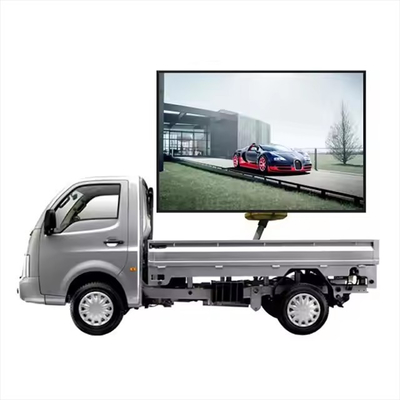

P10 IP65 Waterproof Truck Mounted LED Display 10mm Pixel Pitch

تفاصيل المنتج:

Place of Origin:	ShenZhen in China
اسم العلامة التجارية:	SCXK
إصدار الشهادات:	CE/ROHS/FCC/ISO/UL
Model Number:	P10

شروط الدفع والشحن:

Minimum Order Quantity:	2 sqm
الأسعار:	قابل للتفاوض
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000sqm per month

اتصل

مفصلة وصف المنتج

Pixels:	10mm	Led Type:	SMD 3535
Display Function:	Video	Waterproof:	IP65
Frame Frequency:	>=60HZ	Average NO Failure:	>=1000hours
Transmiiting distance:	Internet cable <100m	Refresh Rate:	>=1920HZ
Maximum power:	600m2	module:	320*160mm
cabinet size:	960*960mm
إبراز:	P10 waterproof truck LED display,10mm pixel pitch LED screen,IP65 truck mounted LED display , 10mm pixel pitch LED screen , IP65 truck mounted LED display

IP65 Video Digital Truck Mounted LED Display Full Color 10mm Pixel Pitch

Product Attributes

Attribute	Value
Pixels	10mm
Led Type	SMD 3535
Display Function	Video
Waterproof	IP65
Frame Frequency	>=60HZ
Average NO Failure	>=1000hours
Transmitting distance	Internet cable <100m
Refresh Rate	>=1920HZ
Maximum power	600m²
Module	320*160mm
Cabinet size	960*960mm

Product Description

IP65 Video Digital Truck Mounted LED Display Full Color 10mm Pixel Pitch

Key Features of P10 Mobile Truck LED Screens

LED Screen: Uses imported EPISTAR chips with high illumination level, long lifespan, high refresh frequency, and easy maintenance
Generator Set: Specially designed for this model with lower noise and stable performance
Lifting System: Electric puts with synchronization error of only 1mm
Vehicle Air-Conditioner: Cools LED screen and generator while providing comfortable environment for staff with excellent quake-proof and waterproof indexes
Multi-Media Control System: Integrated control cabinet with industrial computer, amplifier, and operation buttons. Enables live recording, broadcasting, TV programs, and live karaoke

Applications

Outdoor and indoor advertising, digital billboards

Sports halls, fields, playgrounds, schools, churches

Airports, bus stations, and railway passenger terminals

Facades of shopping malls, department stores, banks, and car dealerships

Architecture and social projects, urban information systems

Show-business, concerts, festivals, motor shows, and public events

Technical Specifications

Specification	Value
Model	Outdoor SMD P10
Resolution	10mm
Pixel configuration	1R1G1B
Pixel density	10000/m²
Module resolution	32*16
Module size	320*160mm
View distance	12-300m
White balance brightness	>8000cd/㎡
Color temperature	6500K-9500K
Viewing angles	120° horizontal, 60° vertical
Frame rate	60Hz
Refresh frequency	3000Hz
Working temperature	-20°C to +50°C
Maximum power	<800W/m²
Average power	<300W/m²
Warranty	2 years quality warranty, 10 years spare parts support
