شنتشن Shichuangxinke إلكترونيات المحدودة
المهنية يجعل نوعية جيدة، وتوفير المنتج المثالي والخدمات لكافة العملاء.
 |
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | SCX |
| إصدار الشهادات: | CE/ROHS/FCC/ISO/UL |
| رقم الموديل: | (إس إم دي بي 3)91 |
| الحد الأدنى لكمية: | 5 متر مربع |
|---|---|
| الأسعار: | 524$-828$ |
| تفاصيل التغليف: | حالة الطيران ، حالة خشبية ، كرتون ، الأمر متروك لك. |
| وقت التسليم: | 7-15 أيام عمل بعد تلقي دفعتك |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 5000sqm في الشهر |
| اسم المنتج: | داخلي P3.91 LED عمود مكعب مركز تسوق الإعلان RGB داخلي 360 درجة عمود | سطوع: | 2000 شمعة |
|---|---|---|---|
| الاستخدام: | التركيب الداخلي | شكل: | عمود مكعب |
| يقذف: | 3.91mm | نوع LED: | SMD |
| إبراز: | Indoor LED video wall P3.91mm,SMD3535 cube LED display,DJ stage LED screen 2000nits,SMD3535 cube LED display,DJ stage LED screen 2000nits |
||

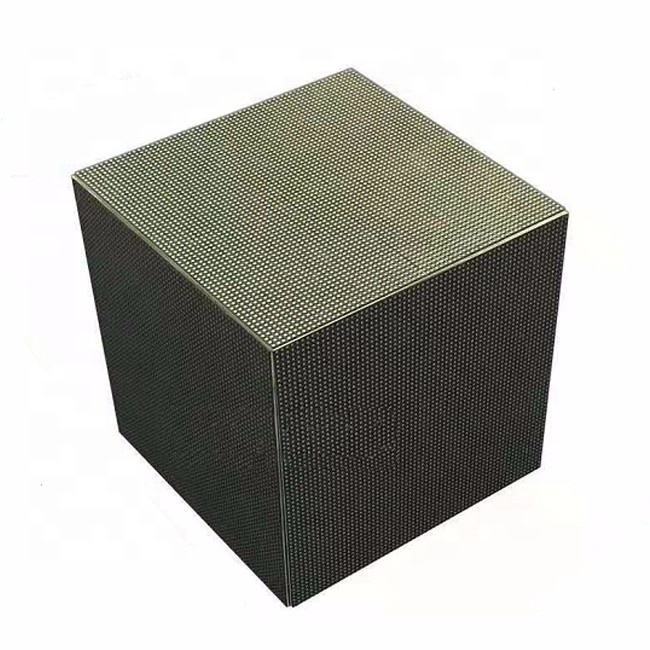

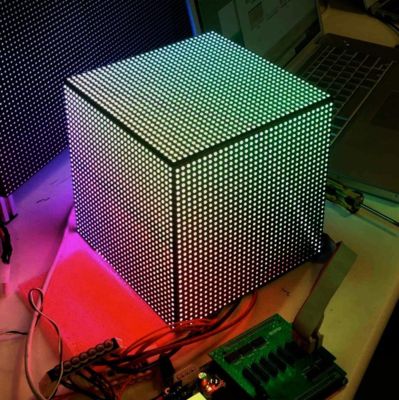

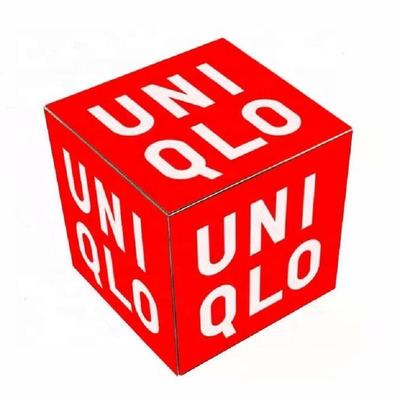

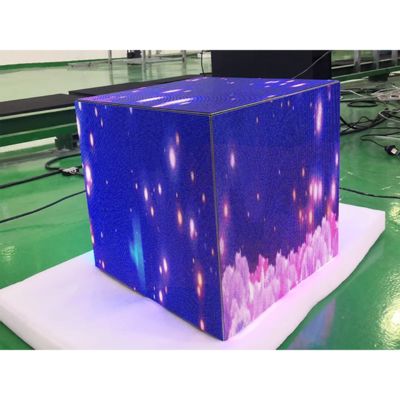

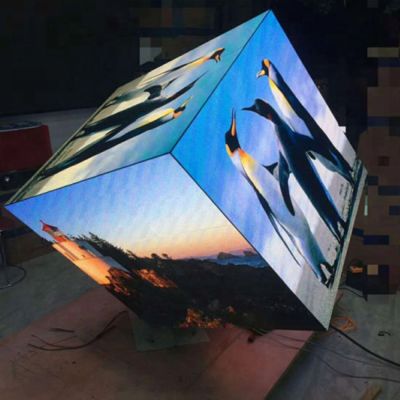

Indoor P3.9 LED Factory price Creative design LED Cube Screen 4 Side Cube LED Screen
♦Saving Energy
Reducing costs up to 95%(compared to incandescent systems)
Efficiency
Long life span-over 100,000hrs(approx.10 years)
Weather resistant
Low maintenance
High resolution and clarity
♦ Technical Training
Our company will train the users based on the manual, system use guide and maintenance guide. The training include system use, system maintenance and equipment protection.
♦ Applications
LED display can be widely used in advertising,multi-media,stadium,stage,rental show,transit directions,etc.
♦ Product Specification
| Indoor SMD P3.91 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3.91 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 65410/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 250x250mm | |||||||||||||
| View distance | ≥3.91m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >800cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/8 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <300W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Production Process:
1) Incoming Inspection→2) SMD→3) Plug-in→4) Wave Soldering→5) After Welding→6) Testing→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and Shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why Choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
